JP CASTER

江龙脚轮产品简介

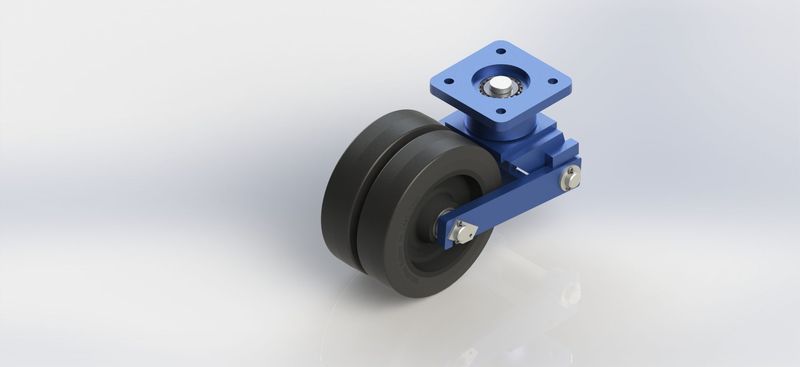

型号：98122-190190-RCI
规格：300×80mm 双轮组铸铁包橡胶活动轮

产品概述

江龙脚轮98122-190190-RCI专为多功能集装箱板拖车设计，是一款高性能、高承载的定制化脚轮。采用双轮组铸铁包橡胶结构，结合超耐磨实心轮胎技术，完美适配集装箱板拖车的严苛作业环境，确保装卸、运输过程中稳定高效，大幅延长使用寿命。

核心优势

1. 超强承重与耐用性

   • 轮体采用铸铁包覆高弹性橡胶，兼具金属结构强度与橡胶减震性能，单轮负载能力达1500kg，双轮组协同承重更优，轻松应对重型集装箱板运输需求。

   • 实心轮胎设计，免充气、抗刺穿，适应复杂地面环境（如碎石、油污），耐磨性提升50%，无惧长期高负荷作业。

2. 灵活转向与稳定制动

   • 特制万向轮结构，支持360°灵活转向，搭配拖车尾部弹簧挂钩及多车连接功能，实现狭小空间内精准操控与多车编组作业。

   • 内置活动式制动限位装置，与拖车两侧固定限位装置联动，双重保障集装箱板运输中不脱轨、不跳动，安全系数倍增。

3. 适配性与兼容性

   • 专为侧面装载型拖车优化设计，轮组高度与拖车28根镀锌滚筒无缝配合，确保P1P/P6P航空集装板及LD系列（LD1-LD39）集装箱装卸流畅。

   • 轮径300mm、宽度80mm，完美匹配行业标准轨道间距，降低摩擦损耗，延长拖车整体使用寿命。

适用场景

• 航空物流：LD1、LD2、LD3、LD4、LD7、LD8、LD9、LD11、LD26、LD29、LD39等标准航空集装箱。

• 集装板运输：P1P、P6P等航空集装板的侧向装卸与短驳转运。

• 工业场景：重型设备、精密仪器的多车编组运输与仓储调度。

江龙脚轮——以精密制造赋能高效物流，为全球集装箱运输提供安全、可靠的解决方案！
如需定制服务或技术咨询，请联系江龙专业团队。

Jianglong Caster Product Introduction
Model: 98122-190190-RCI
Specifications: 300×80mm Double Wheel Set, Cast Iron with Rubber Coating, Swivel Caster

Product Overview

The Jianglong Caster 98122-190190-RCI is specifically designed for multi-functional container pallet trailers. It is a high-performance, heavy-duty customized caster featuring a double wheel set with cast iron core and rubber coating. Combined with solid tire technology, it perfectly adapts to the demanding working environment of container pallet trailers, ensuring stable and efficient loading, unloading, and transportation while significantly extending service life.

Core Advantages

1. Exceptional Load Capacity and Durability

   • The wheel body is made of cast iron coated with high-elasticity rubber, combining the strength of metal with the shock-absorbing properties of rubber. The single wheel load capacity reaches 1500kg, and the double wheel set provides even greater load-bearing performance, effortlessly handling heavy container pallet transportation needs.

   • Solid tire design, puncture-proof and airless, adapts to complex ground conditions (such as gravel and oil), with wear resistance increased by 50%, ensuring long-term high-load operations.

2. Flexible Steering and Stable Braking

   • Custom swivel wheel structure supports 360° flexible steering, paired with the trailer's spring-loaded rear hook and multi-trailer connection function, enabling precise maneuvering and multi-trailer operations in tight spaces.

   • Equipped with an adjustable braking and positioning device, working in tandem with the trailer's side fixed positioning devices, providing dual protection to prevent container pallets from derailing or bouncing during transportation, significantly enhancing safety.

3. Adaptability and Compatibility

   • Optimized for side-loading trailers, the wheel set height seamlessly integrates with the trailer's 28 galvanized rollers, ensuring smooth loading and unloading of P1P/P6P aviation pallets and LD series (LD1-LD39) containers.

   • With a wheel diameter of 300mm and width of 80mm, it perfectly matches industry-standard track spacing, reducing friction loss and extending the overall service life of the trailer.

Technical Parameters

Application Scenarios

• Aviation Logistics: LD1, LD2, LD3, LD4, LD7, LD8, LD9, LD11, LD26, LD29, LD39, and other standard aviation containers.

• Pallet Transportation: Side loading and short-distance transfer of P1P, P6P, and other aviation pallets.

• Industrial Applications: Multi-trailer transportation and warehousing of heavy equipment and precision instruments.

Jianglong Casters – Empowering Efficient Logistics with Precision Manufacturing, Providing Safe and Reliable Solutions for Global Container Transportation!
For customization services or technical inquiries, please contact the Jianglong professional team.

Note: This product complies with ISO 9001 Quality Management System and aviation cargo equipment safety standards.
