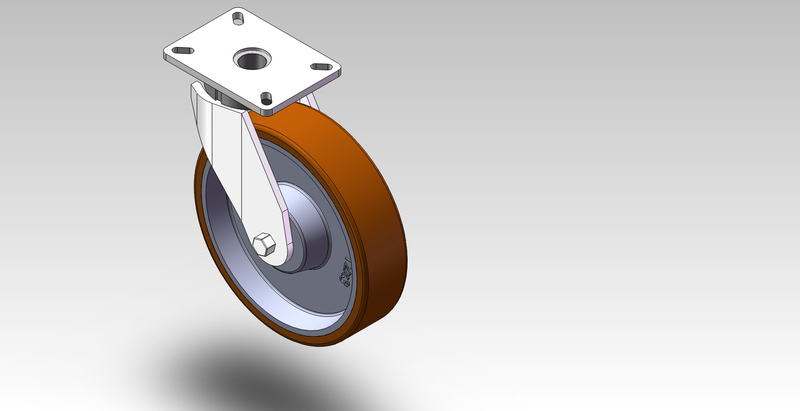

超重型脚轮 Super heavy duty Caster
超重型脚轮设计的不仅仅是更大的载重,然而还需要考虑安全,江龙设计的超重型脚轮往往将安全可靠放在首位,选择一款合适的超重型脚轮将会为你带来更多的便捷也能为你创造更高的效率
The super heavy-duty wheel is not only designed for greater load, but it also needs to be considered safe. The super heavy-duty casters designed by the Dragon tend to be safe and reliable in the first place. Choosing a suitable super heavy wheel will bring you more convenience and create higher efficiency for you.
合理的设计可以应用于多个行业,例如支撑设备,模具和航天设备等,合理的支架厚度设计采用9.5mm增加了强度及耐用性,所有的转动部分均配有可维护加润滑油的油嘴,便于现场加油脂维护
Typical applications include ground support equipment,die carts, and aircraft engine stands. Leg thickness of 3/8" adds extra strength and durability. All swivel sectionsare supplied with a lubrication fitting for field maintenance.
| ITEM | Caster & Wheel | Load Capacity | |||
| 编号 | WHEEL | Yoke | （载重）kgs | ||
| [A] | [B] | [C] | [D] | ||
| 8040-01-NY | 100mm | 75mm | 145mm | 97mm | 1400 KGS |
| 8050-01-NY | 125mm | 75mm | 168mm | 109mm | 1400 KGS |
| 8060-01-PCI | 150mm | 75mm | 197mm | 128mm | 1400 KGS |
| 8080-01-PCI | 200mm | 75mm | 257mm | 159mm | 1500 KGS |
| 8010-01-PCI | 250mm | 75mm | 303mm | 188mm | 1600 KGS |
| 8012-01-PCI | 300mm | 75mm | 352mm | 228mm | 1800 KGS |
| 8016-01-PCI | 400mm | 100mm | 455mm | 270mm | 2000 KGS |
Alternate or custom caster configurations available.
提供可定制脚轮产品及装置
